AAP6011ASW8专用DC/DC转换器IC|圣邦微正品现货IC供应

来源：昊海鑫 时间：2022-10-17 15:27

The AAP6010A is a wide input voltage, high efficiency current mode synchronous buck converter that achieves excellent load and line regulation. The AAP6010A operates in either constant output current (CC) mode or constant output voltage (CV) mode. The CC current value is set by an external sense resistor. AAP6010A provides up to 3.5A output current at 125kHz switching frequency.

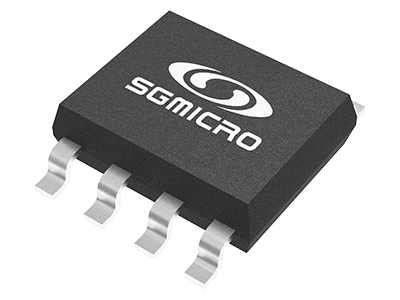

The AAP6010A is in a Green SOIC-8 package. It is rated over the -40℃ to +85℃ temperature range.

FEATURES

Wide 7.5V to 40V Input Voltage Range
Fixed 125kHz Switching Frequency
Duty Cycle Range (0 ~ 100%)
CC/CV Mode Control
Up to 3.5A Output Current
High Efficiency Up to 95%
0.797V Reference Voltage
Output Short Circuit Protection
FB Resistance Short Protection
Nearly Zero Input Current at Short Circuit Protection
Internal Soft-Start
Programmable Output Cable Compensation
Thermal Shutdown Protection
Available in a SOIC-8 Package
RoHS Compliant and Halogen Free

Car Chargers/Adaptors

Rechargeable Portable Devices

Battery Chargers
